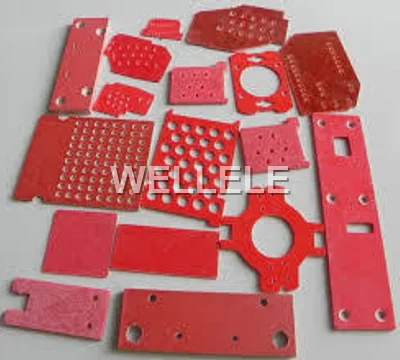

GPO-3 Polyester Glass Laminate Sheet
Track-resistant, V-0 sheet for busbar supports and barriers. GPO-3 is the standard sheet for busbar supports and switchgear barriers because of its track resistance and V-0 flame class. We hold it in stock and machine to drawing. Plates are cut, punched burr-free and machined with hole position and flatness inspected. Its track resistance and V-0 class suit the creepage and flame needs of busbar s
Track-resistant, V-0 sheet for busbar supports and barriers. GPO-3 is the standard sheet for busbar supports and switchgear barriers because of its track resistance and V-0 flame class. We hold it in stock and machine to drawing. Plates are cut, punched burr-free and machined with hole position and flatness inspected. Its track resistance and V-0 class suit the creepage and flame needs of busbar s
Technical specifications
| Material | Polyester glass (GPO-3) |
| Temp class | F, ~155 degC |
| Flame | UL 94 V-0 |
| Property | High track resistance |
| Use | Busbar supports, barriers |
💾 Datasheets & Test Reports
Download the technical data sheet for this product (PDF).
Information required for quotation
| Base tube | Approved material grade, ID, OD, wall and conditioning as per drawing |
| Datums | Drawing datum scheme and measurement reference |
| Key dimensions | Feature positions, depths, pitch and diameters reviewed before quotation |
| Thread / profile | Standard or custom profile, class, depth, engagement and gage method |
| Other features | Holes, slots, steps, chamfers, cuts and marking |
| Acceptance | Tolerances, sampling, gages, FAI and inspection report |
| Order | Prototype and production quantity, packaging and delivery target |
Applications by industry
- Busbar supports and phase barriers in MV switchgear
- Arc-shielding plates in MCC buckets and breaker compartments
- Motor control center insulation sheets
- Transformer saddle and clamp assembly plates
- Low-CTI supports in panel and box manufacturing
- Punchable, arc-resistive laminate for OEM enclosures
Why GPO-3 polyester glass for this application
GPO-3 punches cleanly, arcs well and keeps a high CTI, making it the standard flat stock for MV bus supports and barrier plates where tracking in polluted air is the real enemy.
Confirm CTI/tracking index for your application voltage; GPO-3 is not for continuous high-load structural use. Check punch-vs-fill interplay for thin sections.
Standards: ASTM D709, IEC 60893, UL 94 V-0, UL 1446 (grade dependent).
Feature and remaining-wall review
Diamond-coated tools for clean edges; CNC turning, grinding and drilling to drawing. Dimensional stability excellent with controlled moisture content. Review feature depth, edge distance and remaining wall against critical geometries. Capability is confirmed on your drawing, not from a blanket tolerance.
Inspection and traceability
We state the control plan with you. Batch traceability links raw material lot to finished part.
- First-article inspection (FAI) per your plan
- In-process dimensional checks at every station
- Batch certificate of conformance (COA) supplied on request
- Lot traceability to incoming material certificate
- Dielectric strength and insulation resistance testing available on request
Related components
G10 / FR-4 Epoxy Glass Washers
Related insulation component from the WELLELE catalog.
G5/G9 Glass Melamine Sheet
Related insulation component from the WELLELE catalog.
Phenolic Cotton Laminated Sheets
Related insulation component from the WELLELE catalog.
Common questions
What voltage class can epoxy glass handle?
Dielectric strength ≥ 20 kV/mm. Voltage rating depends on thickness, geometry and safety factor — your drawing determines the insulation level.
Can epoxy glass be machined to tight tolerances?
Yes. We hold ±0.05 mm on ID/OD with CNC turning and grinding using diamond-coated tools to avoid delamination.
Is epoxy glass arc-resistant?
It has good arc resistance but is not arc-quenching. For direct arc contact, pair with ceramic-filled or synthetic arc-quenching composites.
What certifications do you provide?
Material COA, batch traceability, first-article and final inspection per your plan. Certificates comply with RoHS and REACH on request.
Why GPO-3 for busbar supports?
Material COA, batch traceability, first-article and final inspection per your plan. Certificates comply with RoHS and REACH on request.
Engineering Guides & Selection Notes
Related technical articles that help specify this product.
Get pricing for GPO-3 Polyester Glass Laminate Sheet
Attach the drawing with annual volume. We check the material against your duty and tolerance, verify ID / OD / wall / features, and respond with manufacturability notes and pricing.
